Customer pain: Oil, metal chips, cutting fluids on machinery.
Requirement: High impact, stable coverage, long service life.
Industrial Cleaning & Washing Spray Nozzles
Durable, clog‑resistant nozzle solutions for equipment, tanks, and precision cleaning. Covers 3 to 275 bar with materials including 316L, PVDF, and Silicon Carbide.
Common Cleaning Challenges & CYCO Solutions
Removing Oil, Grease & Production Residues
Achieving Full Coverage & Eliminating Dead Zones
Customer pain: Incomplete cleaning inside tanks, large vessels, and blind areas.
Requirement: 360° coverage, uniform spray, efficient cleaning.
CYCO Solutions:
K4‑9800 Tank Washing Nozzle
·
6160 360° High Pressure Tank Nozzle
·
360‑A Tank Cleaning Nozzle
Precision Cleaning Without Surface Damage
Customer pain: Sensitive surfaces, electronic components, tight tolerances.
Requirement: Accurate flow, fine droplets, low contamination.
CYCO Solutions:
JM6 Impingement Mist Nozzle
·
D‑1/4‑303SS Air Atomizing Nozzle
·
BB‑KYPVDF High Purity Nozzle
Reducing Water Consumption & Maintenance Costs
Customer pain: High water usage, frequent replacements, production downtime.
Requirement: Optimized spray pattern, longer life, easy maintenance.
CYCO Solutions:
QJJ Plastic Quick‑Detach Nozzle
·
SPJT‑SS‑120 Spiral Nozzle
·
BG‑W Wide Angle Full Cone
Steel · Automotive · Machinery

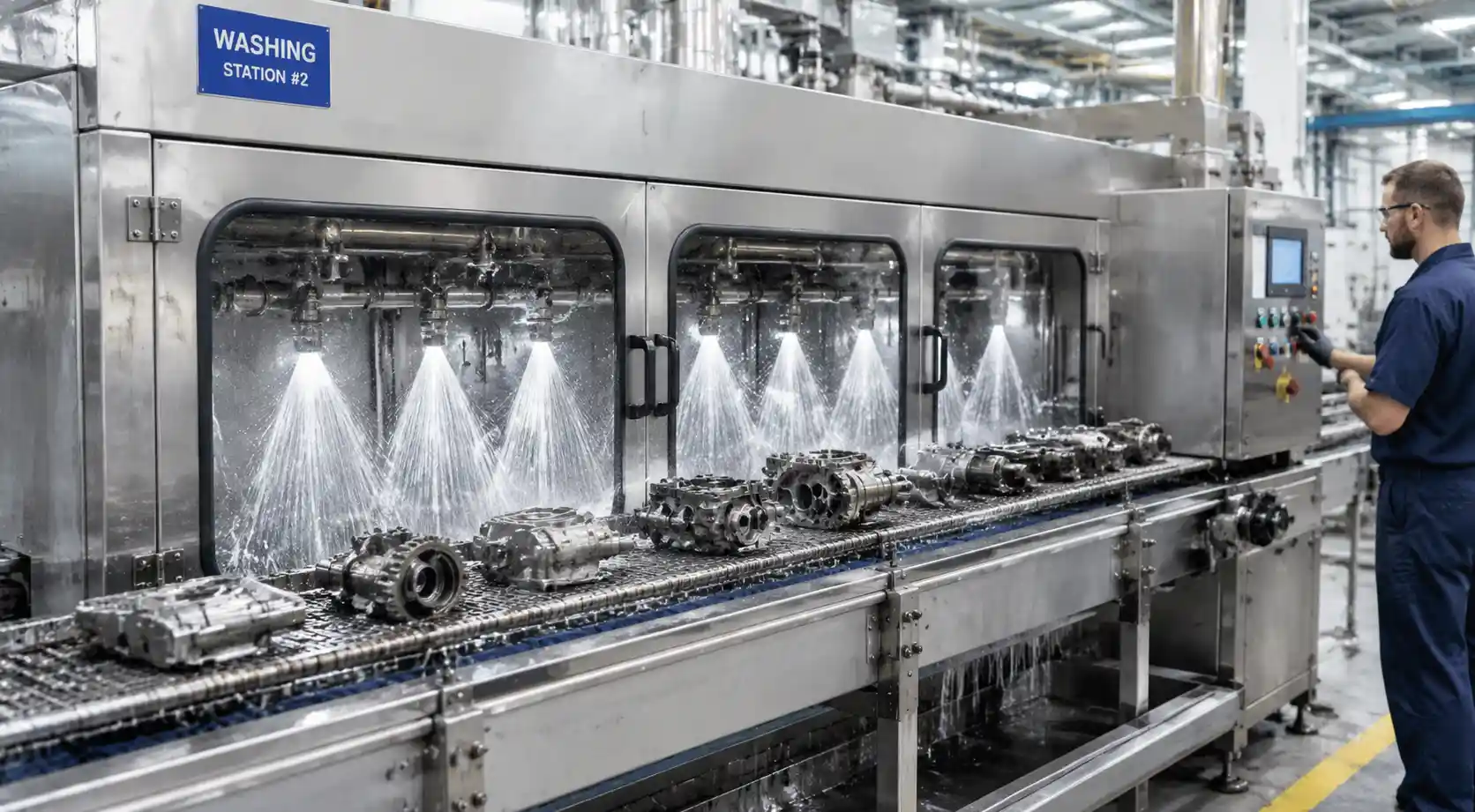

Industrial Equipment Cleaning
Covers machinery, production lines, molds, and metal parts. Typical contaminants include cutting fluids, lubricants, metal chips, and production residues.
Associated Industries: Steel & Metallurgy · Automotive · Chemical
Cleaning Challenges:
- Removing oil, grease and metal particles
- Continuous cleaning without interrupting production
- Adapting to pressures from 3 to 275 bar
Recommended Products:
MEG‑275 High Pressure
275 bar · 0°–65° · Alloy Steel
CC Flat Fan Nozzle
0.3–35 bar · 15°–110° · 303/316SS
BB Standard Full Cone
43°–106° · Brass/SS/Plastic
💡 Engineering Tip: For heavy grease, combine MEG‑275 (75) with BB Full Cone (89) for chemical cleaning. For large surfaces, CC Flat Fan (60) offers better coverage.
Chemical · Food · Storage · Marine

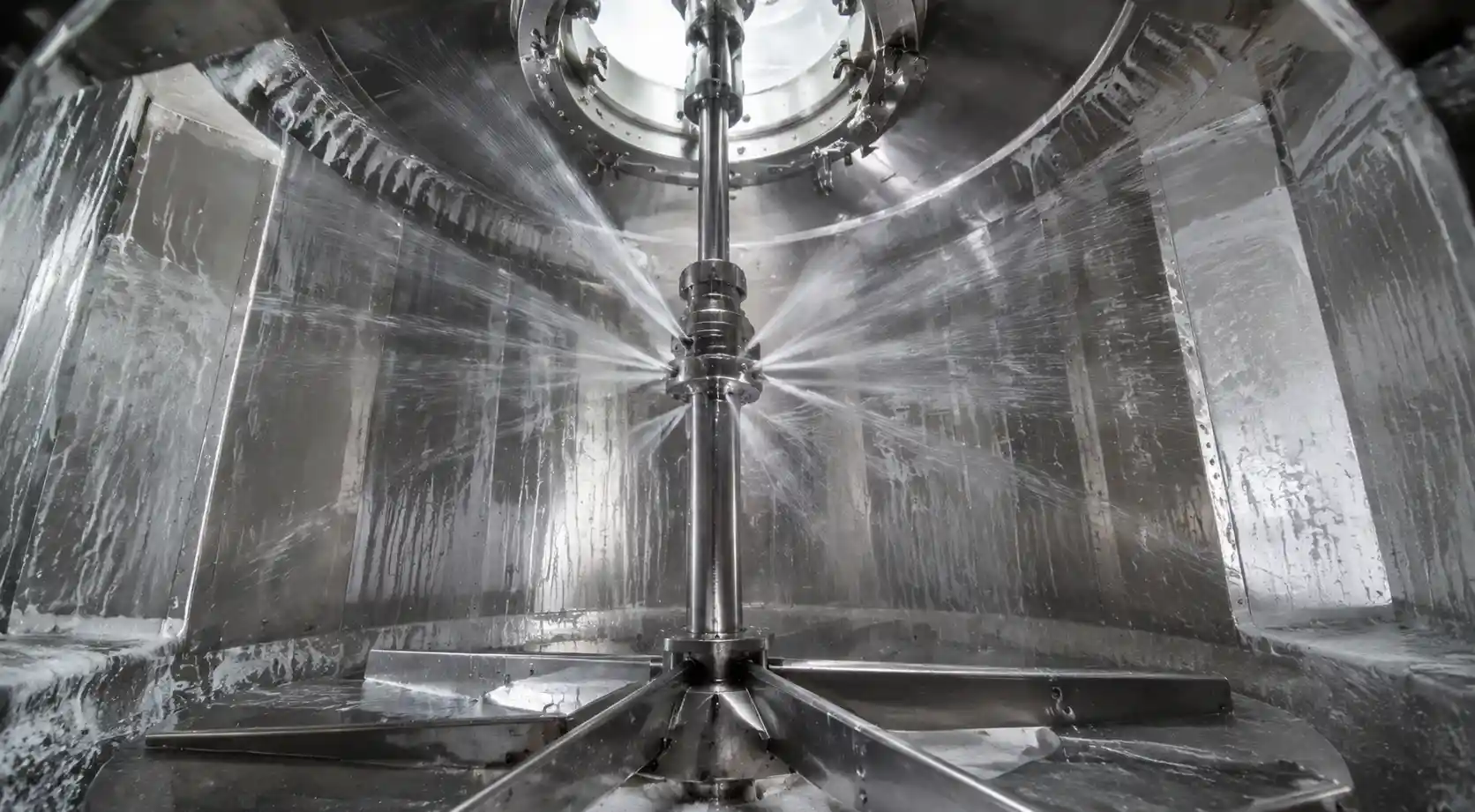

Tank Cleaning
Includes storage tanks, reactors, mixers, fermenters, and tanker trucks using CIP systems. Full 360° coverage is essential to eliminate dead zones.
Associated Industries: Chemical · Food & Beverage ·
Cleaning Challenges:
- Blind areas behind mixers, baffles and internals
- Removing sticky residues (resins, coatings, fermentation by‑products)
- Chemical compatibility with cleaning agents
- Reducing downtime and chemical consumption
Recommended Products:
K4‑9800 Tank Washing
10 bar · 15/21 tips · 316SS

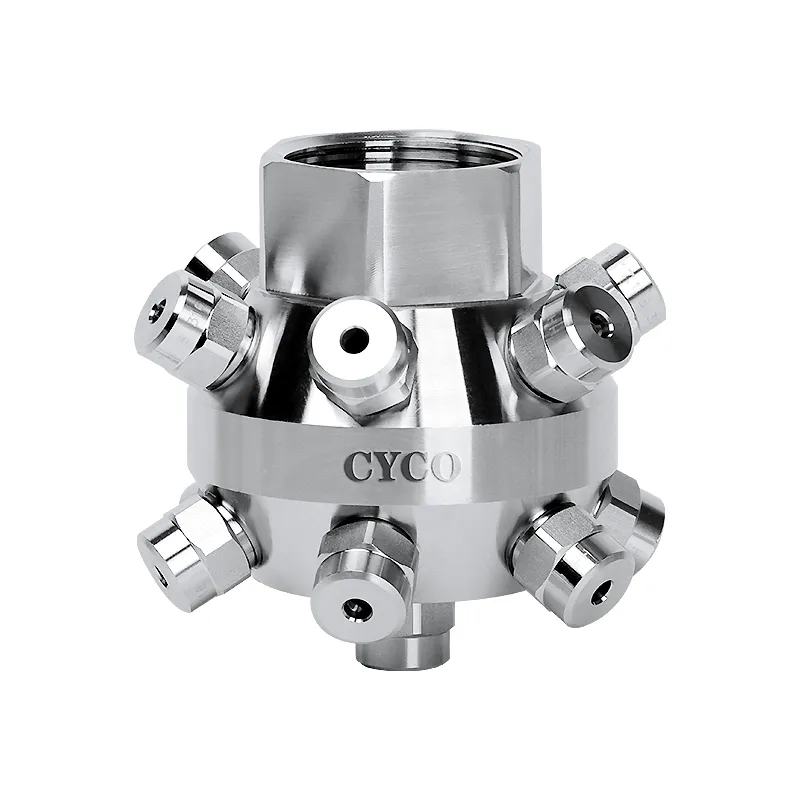

6160 360° High Pressure
35–1470 L/min · 3.1m diameter
SPJT‑SS‑120 Spiral
60°–170° · 5.5–4140 L/min
💡 Engineering Tip: For liquids with solids (fermentation broths, paints), choose K4‑9800 (54) or 6160 (56) for anti‑clog design. For tanks over 10m, consider 360‑A (58) – consult our engineers.
Beverage · Packaging · Pharma

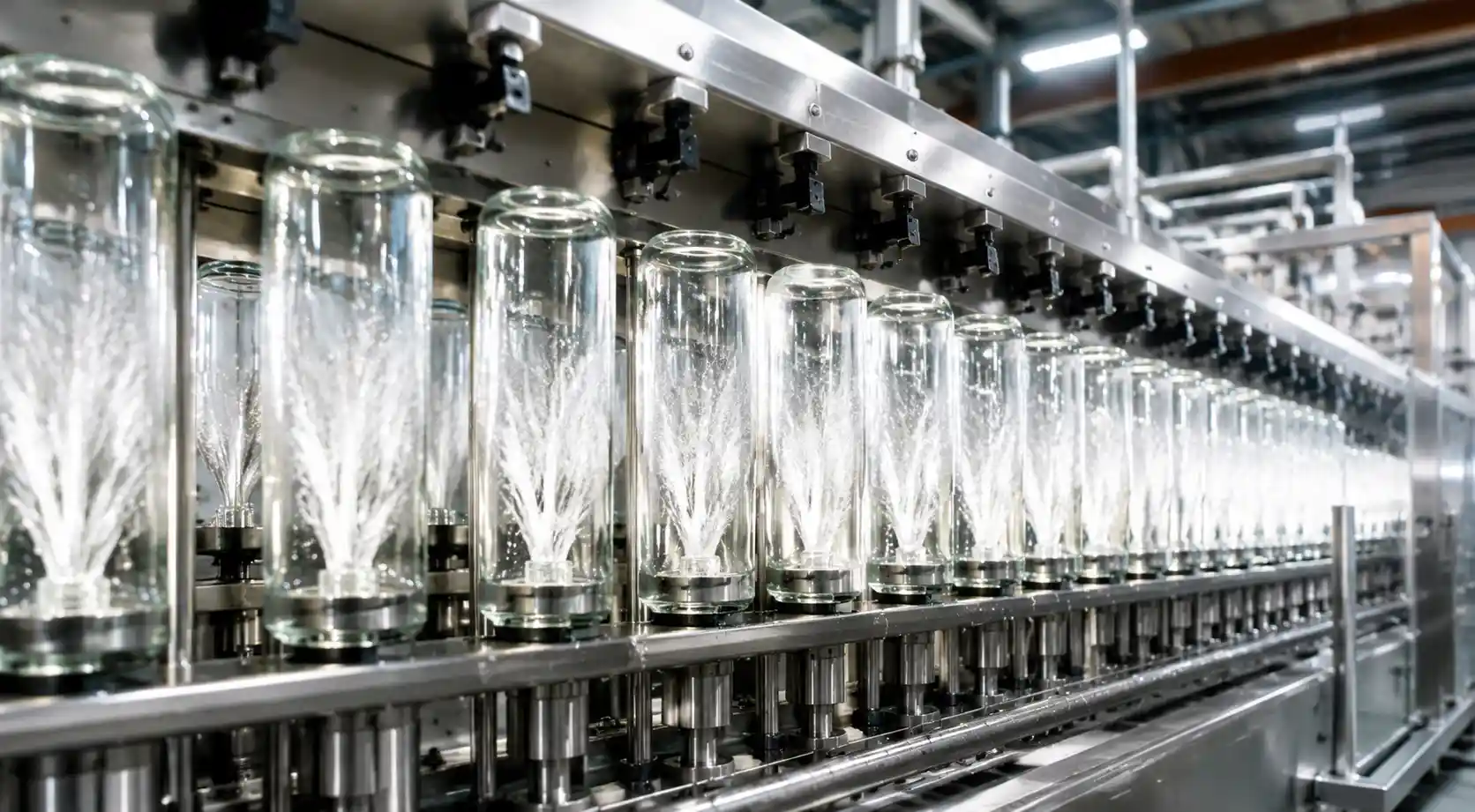

Bottle & Can Cleaning
High‑speed washing of beverage bottles, food containers, and pharmaceutical vials. Requires small openings (< 30mm) and line speeds > 600 bottles/min.
Associated Industries: Food & Beverage ·
Cleaning Challenges:
- Accessing small bottle necks (< 30mm)
- Matching high‑speed production lines
- Food‑grade material requirements (316L)
Recommended Products:
12810 Bottle Wash Nozzle
360° rotary · 5 bar · 316SS
CC Flat Fan Nozzle
0.3–35 bar · 15°–110°
W Wide Angle Flat Fan
70°–140° · 0.2–4 bar
💡 Engineering Tip: For pharma‑grade vials, combine 12810 (55) with BB‑KYPVDF (70) for high‑temperature sterilization resistance.
Electronics · Assembly

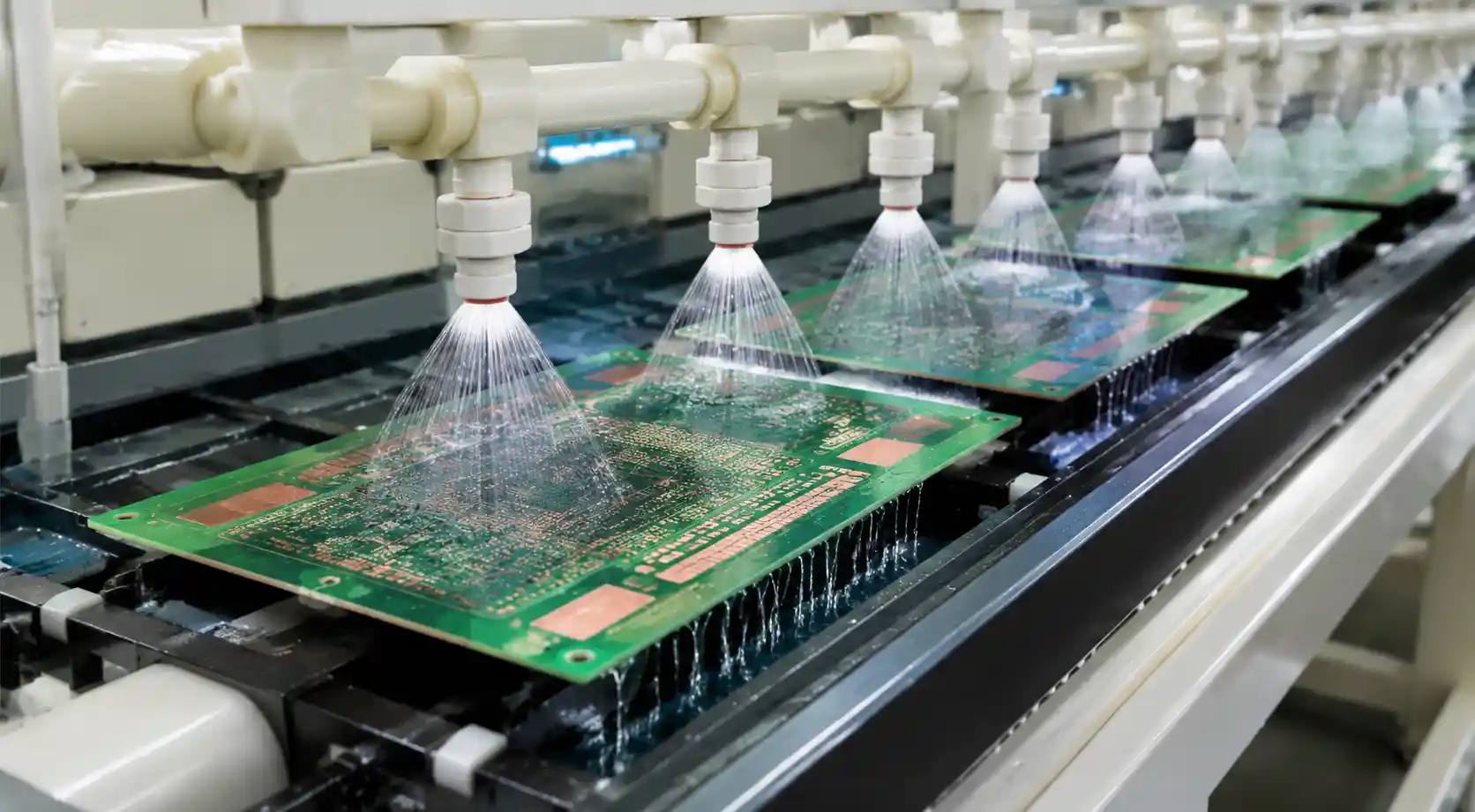

PCB Cleaning
Etching, developing, washing, and chemical cleaning processes in PCB manufacturing – requires precision and chemical resistance.
Associated Industries: Electronics & PCB
Cleaning Challenges:
- Protecting fine circuit traces from damage
- Resisting acids, alkalis, and solvents
- Preventing particle contamination affecting electrical performance
Recommended Products:

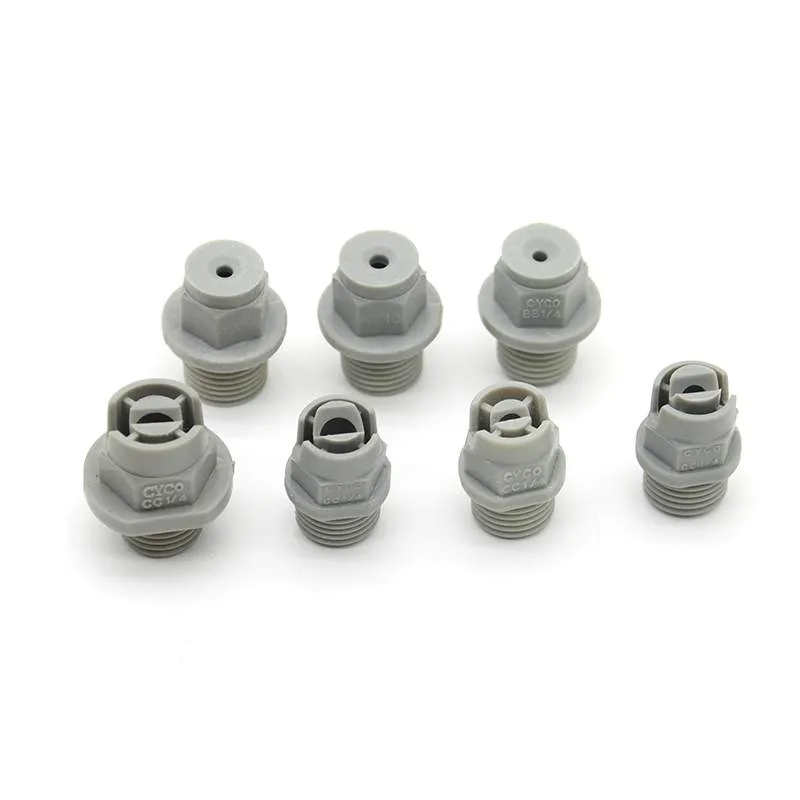

BB‑KYPVDF High Purity
PVDF · 148°C · Corrosion‑resistant

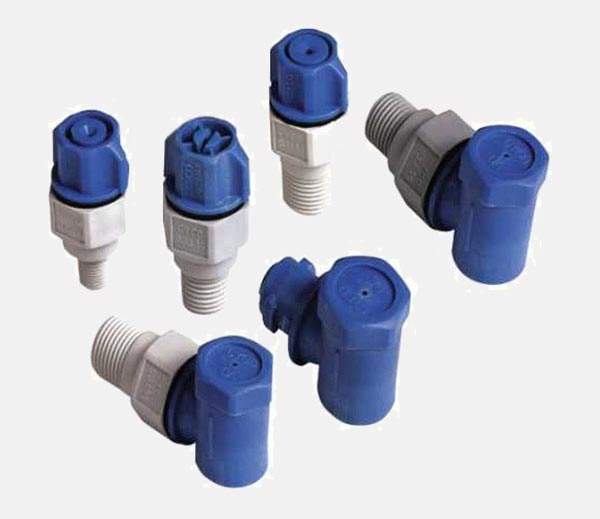

QJJ Plastic Quick‑Detach
PP/PVDF · Easy maintenance

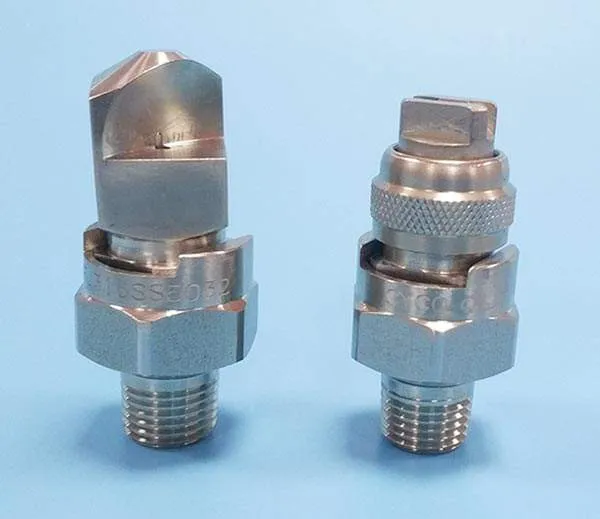

QJJ SS Quick‑Detach
3.9 L/min@3bar · 1/4″
💡 Engineering Tip: For etching lines, use BB‑KYPVDF (70) which resists ferric chloride and acidic etchants. For developing, use QJJ (71) with 100–200 mesh filters.
Wafer · Chip

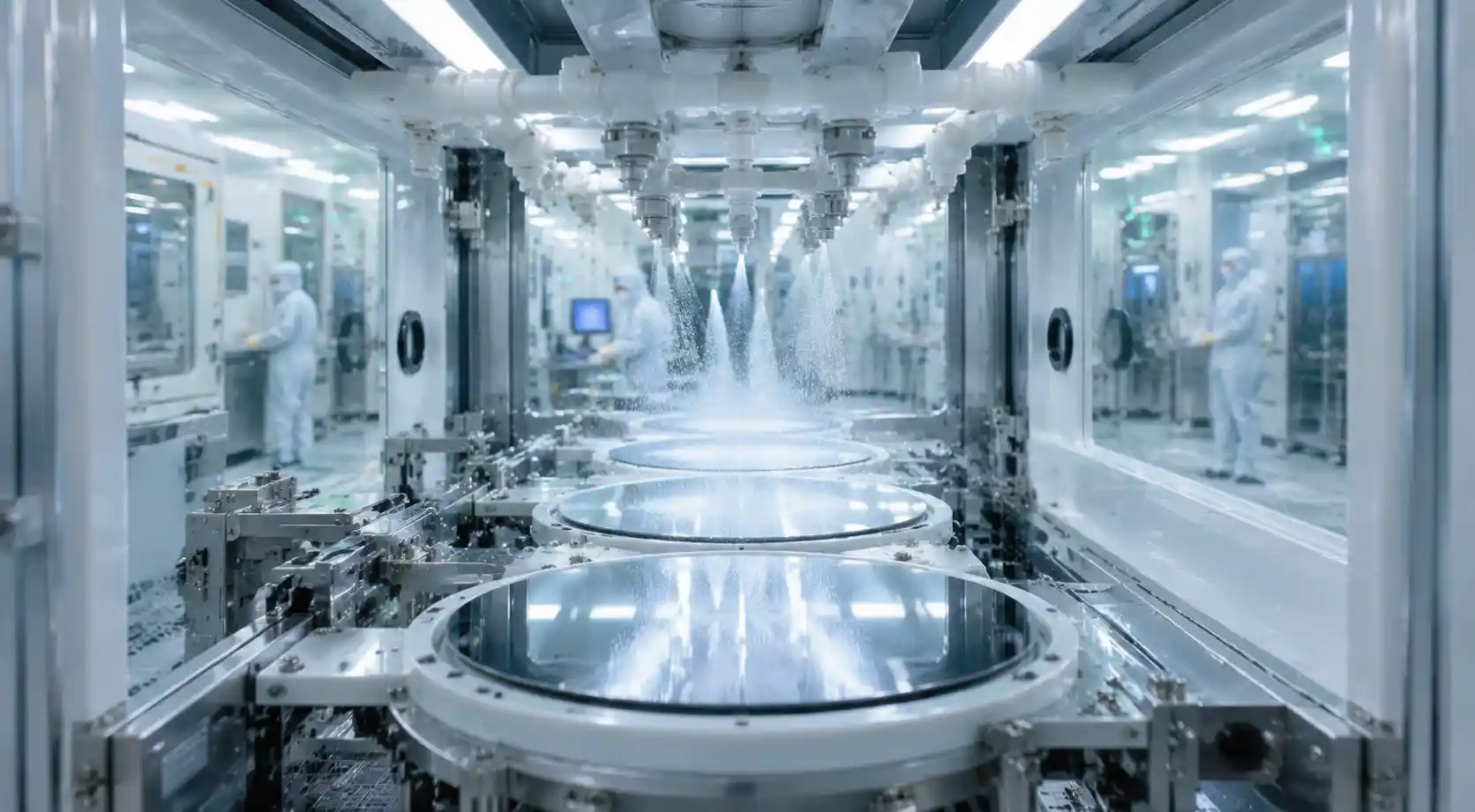

Semiconductor Wafer Cleaning
Developing, etching, and ultra‑pure water rinsing in wafer fabrication – the highest cleanliness and precision requirements.
Associated Industries:
Cleaning Challenges:
- Removing sub‑micron particles and chemicals
- Ultra‑pure water and chemical compatibility
- Contamination‑free environment
Recommended Products:

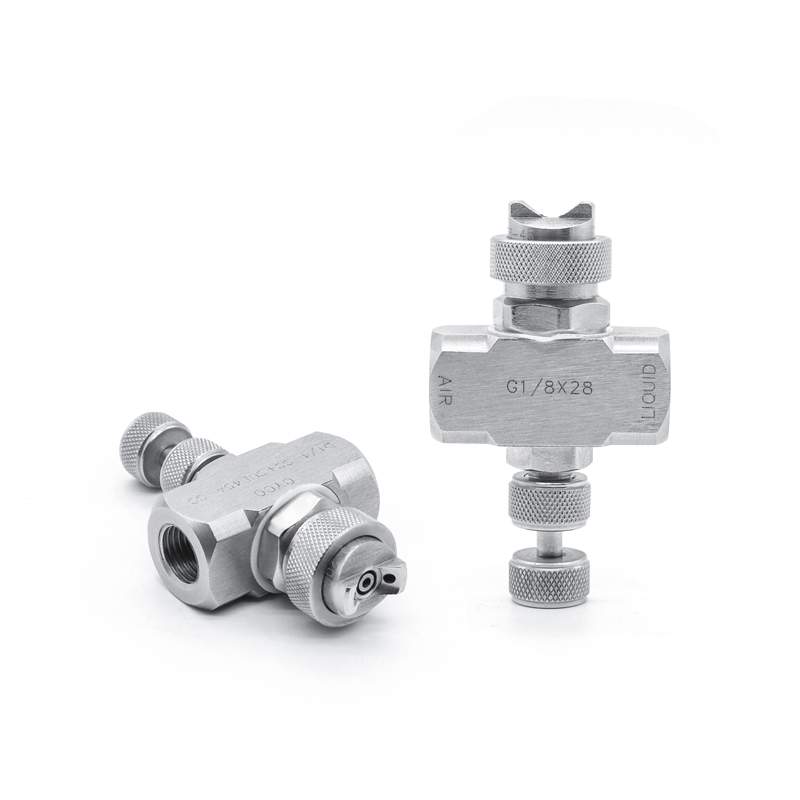

D‑1/4‑303SS Air Atomizing
30‑50μm · 0.7–4 bar
JM6 Impingement Mist
0.043 L/m@2bar · Ultra‑fine
BB‑KYPVDF High Purity
PVDF · 148°C
💡 Engineering Tip: For wafer developing, choose D‑1/4‑303SS (99) with built‑in 200‑mesh filter to ensure ultra‑pure water cleanliness.
Food · Dairy · Brewery
Food Processing Cleaning
CIP cleaning of food equipment, conveyors, containers, and production lines – requires FDA‑compliant materials and hygienic design.
Associated Industries: Food & Beverage
Cleaning Challenges:
- Removing organic soils and biofilms
- Food‑safe, FDA‑compliant materials
- Minimising chemical residues
Recommended Products:

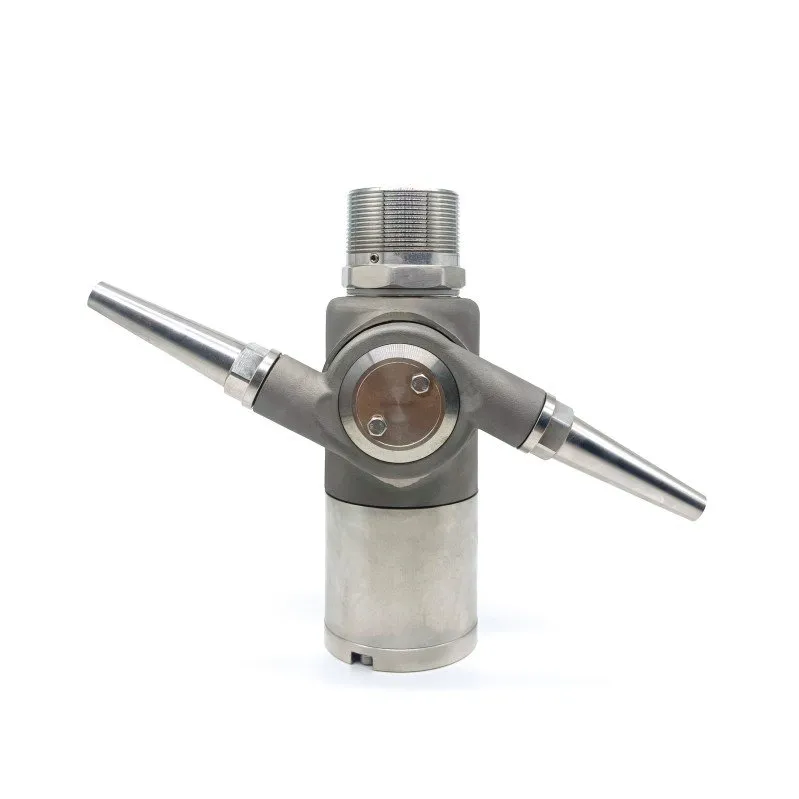

360‑A Tank Cleaning
316L · 1–21 bar · 6‑50 t/h
CC Flat Fan Nozzle
303/316SS · 15°–110°
W Wide Angle Flat Fan
70°–140° · 0.2–4 bar
💡 Engineering Tip: Food CIP systems often combine K4‑9800 (54) (tanks) with 360‑A (58) (pipes/small vessels), all in 316L supporting SIP steam sterilisation.
Automotive · Construction
Glass Cleaning
Washing and drying of flat glass, automotive glass, and electronic glass – requires surface protection and streak‑free results.
Associated Industries: Automotive ·
Cleaning Challenges:
- Controlling impact to avoid scratching
- Uniform cleaning without water spots
- Fast drying to match line speed
Recommended Products:
W Wide Angle Flat Fan
70°–140° · 0.2–4 bar
CC Flat Fan Nozzle
0.3–35 bar · 15°–110°
K1 Air Absorption Flat Fan
#73
Brass/SS · Air/Steam

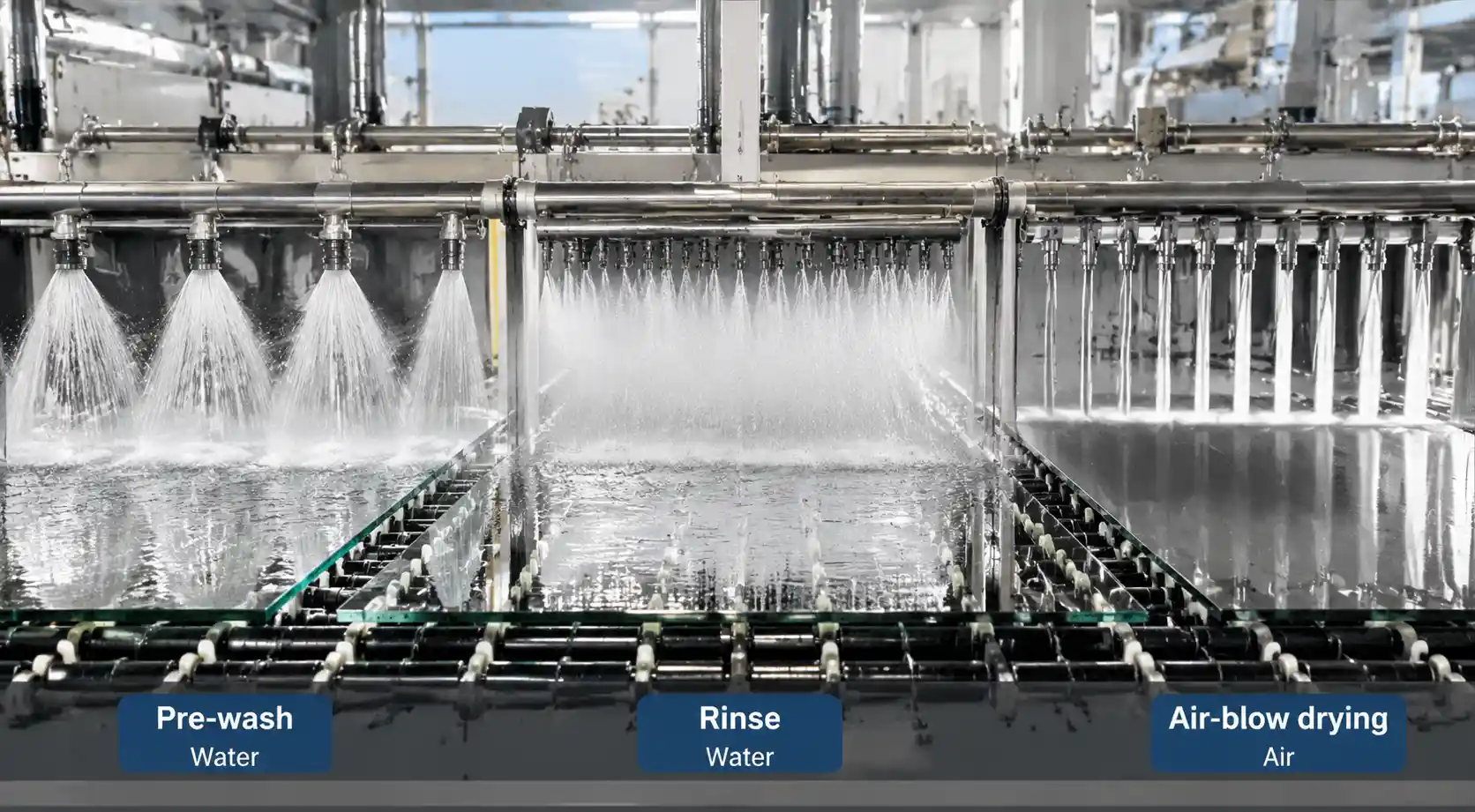

💡 Engineering Tip: A typical glass line uses three stages: W (64) pre‑wet → CC (60) rinse → K1 (73) air knife drying.
Environmental · Water Treatment
Filter Cleaning
Backwashing and surface cleaning of filter elements, cloths, and cartridges – requires effective particle removal without damaging the media.
Associated Industries:
Cleaning Challenges:
- Removing deep‑bed captured particles (sludge, fibres, crystals)
- Avoiding damage to filter media
- Supporting automated backwashing
Recommended Products:
SPJT‑SS‑120 Spiral
60°–170° · 5.5–4140 L/min
BG‑W Wide Angle Full Cone
110°–120° · 7370 L/min
BB Standard Full Cone
43°–106° · Brass/SS
💡 Engineering Tip: For filter cloth, use BB (89) or SPJT (79) to avoid tearing. For sludge dewatering, choose SPJT (79) for its non‑clogging design.
Select Your Industry for Tailored Recommendations
Explore cleaning nozzle solutions specific to your sector
Frequently Asked Questions
What nozzle is best for industrial cleaning?
Selection depends on pressure, cleaning target, spray pattern, and material compatibility. Flat fan nozzles suit surface washing, full cone for full coverage, and high‑pressure nozzles for stubborn residues.
How do I choose a tank cleaning nozzle?
Consider tank diameter, flow rate, available pressure, and cleaning medium. For tanks up to 3.1m, choose K4 or 6160 series. For larger tanks up to 40m, choose 360‑A series. For small tanks and pipes, choose 12810 rotary spray balls.
Which material is suitable for chemical cleaning?
PVDF offers excellent chemical resistance up to 148°C. 316L stainless steel provides good corrosion resistance for food and general chemicals. Ceramic and silicon carbide are best for high wear and abrasive conditions.
Can CYCO customise cleaning nozzles?
Yes, CYCO offers customisation for spray angle, flow rate, connection type, and material to meet specific application requirements.
How can I reduce water consumption in cleaning?
Correct nozzle selection and spray optimisation can reduce water consumption by 20‑40%. Rotary tank cleaning nozzles are more efficient than fixed nozzles, providing higher impact with less water.
